Provide solutions for smart parcel lockers

Electric Lock Controller

1. Used to control locks, 12 locks can be connected.
2. 16 control boards can be connected in series
3. Open development, you can design the software as you want.
4. Support two communication methods: TCP/IP and RS485.
5. It can work with computers, pads, and Raspberry Pi.
6. Works well on I0S, Windows and Linux.
7. Operating temperature: -25°C ~65°C.
8. With protective box, dustproof.
9. High-quality modules, stable work.

  • Facebook
  • YouTube
  • Pinterest

PRODUCT PARAMETER

PRODUCT DESCRIPTION

运行示意图 R485版 CU12.jpg
运行示意图 TCPIP版 CU12.jpg

Computer: With software to manage all parts.

Router: provide Internet.

RS485-USB: Basic unit. Used for network communication. And transmit TCP/IP commands (from PC) to 485 format (to CU).

NCU12: control unit. Receive the command from BU/PC and send the command to the lock. Get feedback from the lock and send it to BU/PC.

Lock: with latch detection function. Unlock when receiving the command from CU. Send the lock status (locked or not) to the CU.

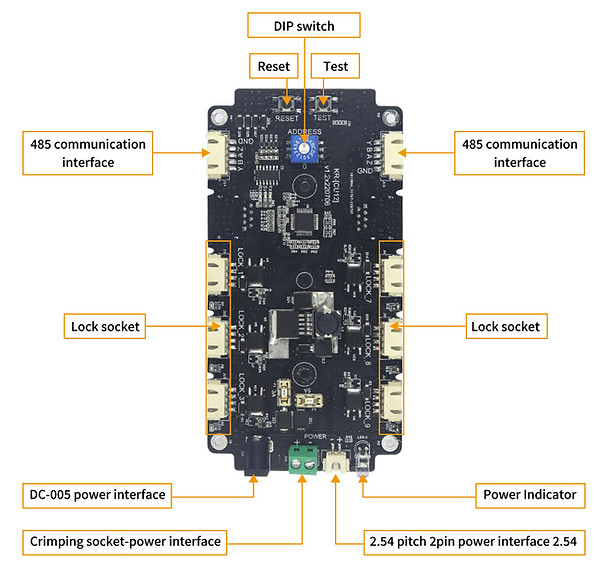

指示示意图 - CU12(1).jpg
